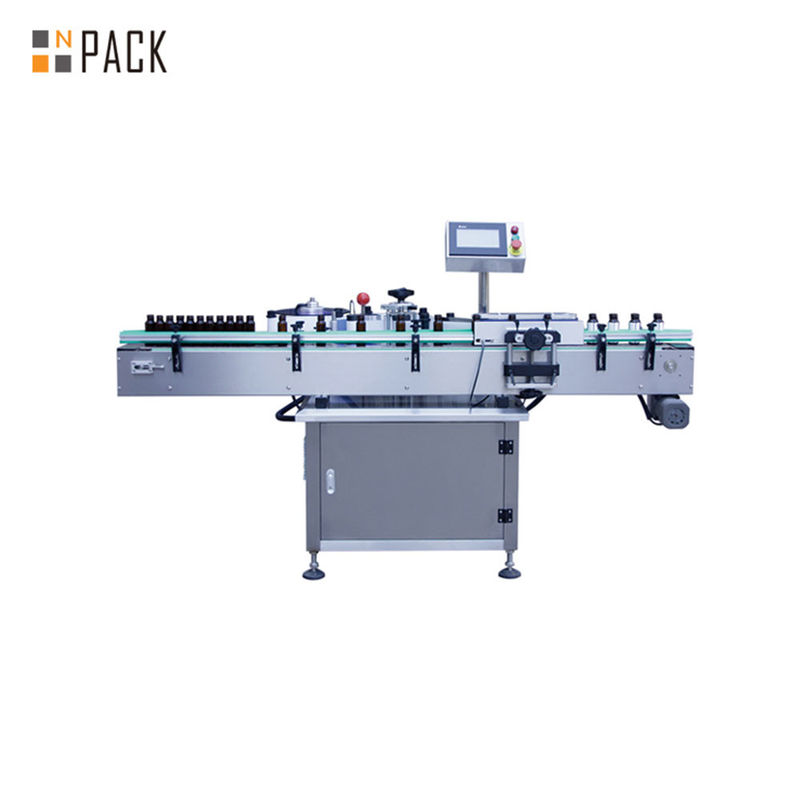

Automatic Perfume Sticker Label Machine
The Perfume Sticker Label Machine is a high-precision automatic solution designed for efficient labeling of perfume bottles. Constructed from durable stainless steel and powered by a 220V system, it ensures stable performance and long service life.
Equipped with an advanced microprocessor control system, it delivers fast, accurate label placement on round and cylindrical containers. Its user-friendly interface and easy adjustments allow quick adaptation to different bottle sizes, improving productivity while reducing labor costs.
Main Feature
1.High automation level: The entire labeling process is fully automated with simple operation, minimizing manual intervention and improving overall production efficiency.
2.Fast labeling speed: Capable of reaching 40–150 bottles per minute, making it suitable for high-volume production demands.
3.Strong adaptability: Suitable for round containers made of plastic, glass, and metal, supporting both full-wrap and half-wrap labeling.
4.Optional functions: Can be integrated with coding or inkjet printers to print batch numbers, production dates, and other information, enabling combined labeling and coding.
5.Reliable quality: Key electrical components are sourced from internationally recognized brands, and the machine housing is made of 304 stainless steel, meeting GMP standards.
6.Intelligent control: Equipped with a PLC control system and color touchscreen interface, featuring functions such as no bottle no labeling, automatic detection, and the ability to store multiple parameter settings.
Key Components:
Label Dispenser: Holds the label roll and delivers labels individually to the machine in a controlled and continuous manner.
Conveyor System: A belt-driven mechanism that moves bottles steadily through each stage of the labeling process.
Registration Mark Sensor: Detects the position or orientation of each bottle and ensures precise alignment for accurate label placement.
Label Applicator: The mechanism responsible for picking labels from the dispenser and applying them securely onto the bottle surface.
Control System: Typically a PLC or microcontroller that coordinates all machine operations, allowing operators to adjust parameters such as speed, timing, and labeling accuracy.
|
Model / technical parameters
|
NP-RL
|
|
Labeling speed (pcs/min)
|
40-150
(relate to material and label size)
|
|
Labeling accuracy(mm)
|
±1.0mm
(material and label sizes are not counted in)
|
|
Label size(mm)
|
(L)20-280mm (H)30-144mm
|
|
Material size (mm)
|
Φ20-φ100mm (H)40-200mm
|
|
Roll inside(mm)
|
φ76mm
|
|
Roll outer diameter(mm)
|
Max:Φ350mm
|
|
Machine size (mm)
|
(L)2000*(W)850*(H)1450(mm)
|
|
Power supply
|
AC220V 50Hz/60Hz 1500W
|
Product Details
What is the Workflow of a Perfume Sticker Label Machine?
Feeding: Bottles are introduced into the machine either manually or via an automated feeding system.
Positioning: The conveyor system aligns the bottles, often using gripper belts or guiding mechanisms to keep them stable and correctly oriented.
Label Detection: A registration sensor identifies the bottle’s position and transmits a signal to the control system for precise coordination.
Label Application: Once triggered, the label applicator retrieves a label from the dispenser and places it accurately onto the designated area of the bottle.
Adhesion: The applied label is pressed firmly onto the surface to ensure smooth bonding without bubbles or wrinkles.
Exit: After labeling, the bottles move along the conveyor and exit the machine, ready for downstream packaging processes.
